Is the Cedarshed 10x16 Rancher Large Shed Kit the right size for your storage needs?
The Cedarshed 10x16 Rancher Large Shed Kit gives homeowners 160 square feet of practical backyard storage for lawn equipment, motorcycles, bicycles, tools, and seasonal supplies. It provides substantial storage capacity without requiring the footprint of the 10x20 Rancher model. With a Western Red Cedar exterior, wide double doors, an included plywood floor, and panelized construction, this DIY shed helps you free up garage space and keep outdoor belongings protected and organized.
Benefits
-
Provides Generous Storage in a Manageable Footprint: The 10-by-16-foot layout provides 160 square feet of space for bulky equipment, everyday tools, and seasonal belongings. There is enough room to create separate storage zones for lawn care equipment, bicycles, gardening supplies, and household overflow while maintaining space to move between items.
-

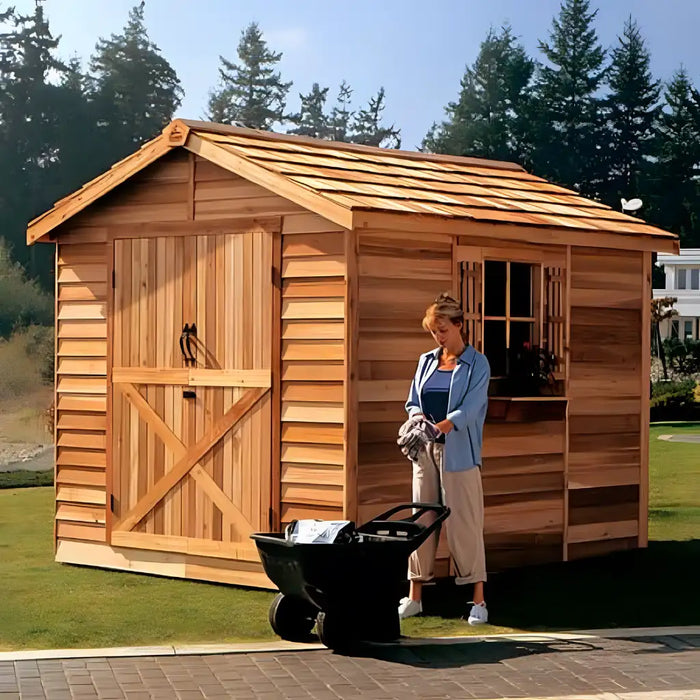

Makes Bulky Equipment Easier to Store: A 60-inch-wide double-door opening gives you convenient access for items that are difficult to move through a standard shed entrance. Riding lawn mowers, motorcycles, bicycles, wheelbarrows, and storage carts can be moved in and out with less awkward maneuvering.
-
Supports Dependable Outdoor Storage: The Western Red Cedar exterior is naturally resistant to rot, decay, and insects, helping the shed handle long-term outdoor use. Kiln-dried SPF framing provides structural support inside, while the cedar siding gives the building a natural appearance that fits comfortably into a backyard setting.
-

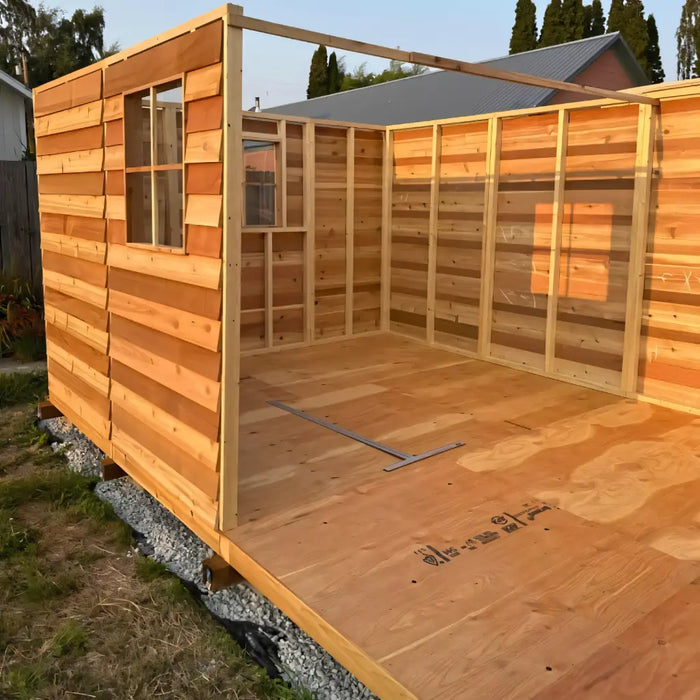

Reduces Complicated On-Site Building Work: Prebuilt wall panels eliminate the need to cut and frame each wall from individual pieces. Assembly hardware and plans are included, helping experienced DIY homeowners spend less time measuring, cutting, and sourcing basic construction materials.
-
Includes Practical Features with Flexible Roof Choices: An included plywood floor creates a ready-to-use storage surface, while the fixed window allows natural light into the shed. Cedar shingle, corrugated metal, and OSB roof options let you select a finish based on your preferred appearance, local conditions, and roofing plans.
Features
- Western Red Cedar exterior
- Panelized wall sections
- 60 in x 71 in double doors
- 24 1/2 in x 27 in fixed window with shutters and window box
- Included cedar floor system with 2x4 joists and 5/8 in plywood panels
- Cedar shingles, 26-gauge metal, or OSB roof options
- Hardware and building plans included
Specifications
| Floor size |
115 1/2 in x 191 in |
| Inside height |
100 in |
| Outside height |
112 in |
| Outside dimensions |
128 1/2 in x 202 in |
| Door opening |
60 in x 71 in |
| Window opening |
24 1/2 in x 27 in |
| Product weight |
1,904 lb |
| Floor construction |
2x4 Western Red Cedar joists with 5/8 in plywood panels |
| Wall and roof framing |
2x3 SPF lumber |
| Exterior finish |
Western Red Cedar bevel siding |
Roof Options
-
Cedar Roof Shingles: Includes pre-shingled roof panels for the traditional cedar appearance shown on many Rancher sheds.
-
Metal Roof: Includes pre-cut 26-gauge corrugated metal roof panels in charcoal gray.
-

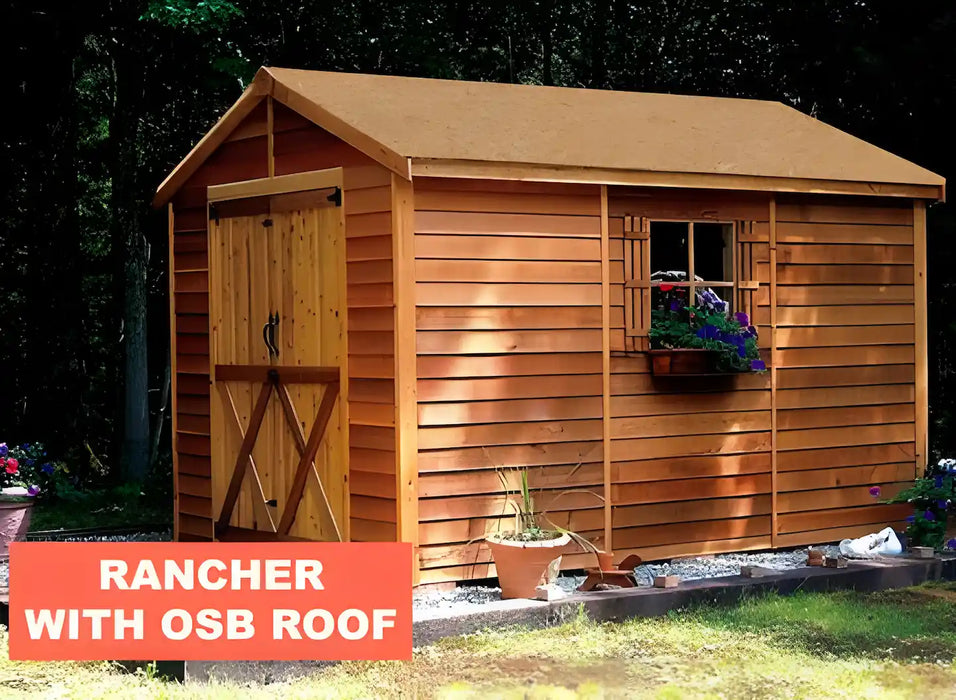

OSB Roof: Includes pre-framed roof panels with OSB sheathing so you can install your preferred shingles or metal roofing. Final roofing material and roofing felt are not included with this version.
Assembly Manual
View 10x16 Assembly Manual
Floor and Foundation Planning
The Rancher kit includes pre-cut cedar floor joists and 5/8 in plywood floor panels. Before assembly, prepare a flat, level site that supports the full floor system and provides drainage away from the shed.
Cedarshed recommends patio stones, pressure-treated 4x4 beams over a prepared base, or a concrete slab. Foundation requirements can vary by location, so check local building and permit requirements before preparing the site.
Delivery and Unloading
The current estimated lead time is about 2 weeks for production plus approximately 1 week for delivery. Delivery time depends on the distance from British Columbia, Canada, to your location.
The freight carrier will call to arrange a delivery window after the shipment reaches the local terminal. Delivery is made to the property line or driveway when the carrier can reach the location safely.
Most shipments can be lowered from the truck with a liftgate. If liftgate service is not available for your delivery, two people can usually unload the panels by hand in about 15 to 30 minutes after removing the paper wrap and plastic straps. Let Homestead Supplier know before ordering if the delivery address has narrow roads, limited truck access, steep grades, or another access concern.
10x16 Rancher Shed FAQ
How much storage space does the Cedarshed 10x16 Rancher Large Shed Kit provide?
The nominal 10x16 layout gives you about 160 square feet of storage. The exact floor size is 115 1/2 in x 191 in.
What can the 10x16 Rancher Shed be used for?

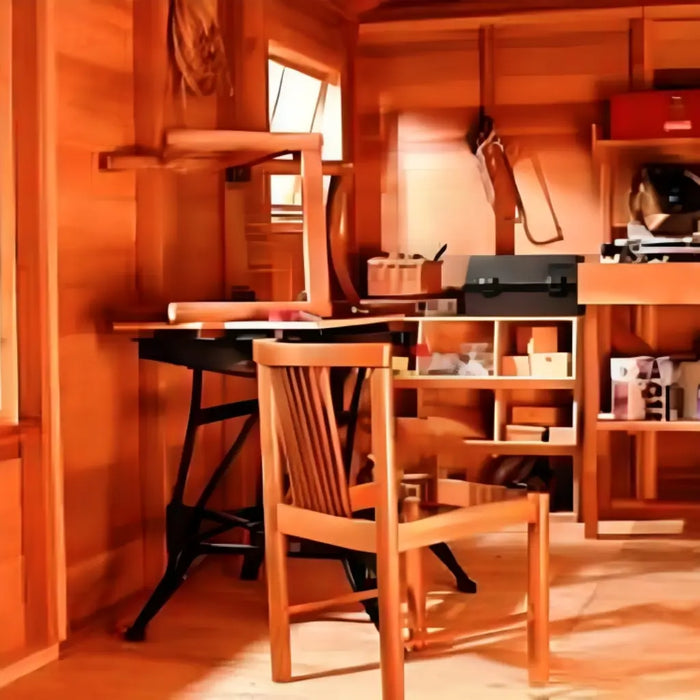

This size works well for a riding mower, bikes, lawn and garden equipment, seasonal bins, shelving, patio furniture, and hobby supplies.
Is a floor included with the shed kit?
Yes. The kit includes pre-cut 2x4 Western Red Cedar floor joists and 5/8 in plywood floor panels. You still need to prepare a flat, level base before assembly.
What roof choices are available?
You can choose pre-shingled cedar roof panels, a pre-cut 26-gauge corrugated metal roof, or pre-framed OSB roof panels for the roofing material you plan to install.
Does the Rancher Shed arrive finished?
The Western Red Cedar exterior arrives untreated. You can leave the cedar natural or apply an exterior stain or finish after assembly.
How is the Rancher Shed delivered?
The panelized kit ships by freight from British Columbia, Canada. The carrier will call to arrange delivery after the shipment reaches the local terminal.
Other Cedarshed Rancher Shed Sizes
View the main Cedarshed Rancher Large Shed Kit page
