Running Water to a Shed, Greenhouse, or Outbuilding: What to Plan Before You Dig

Many backyard water setups start the same way, with a hose run from the closest spigot out to the shed or greenhouse. It works until it doesn't. The mower finds it, or an early cold snap splits it overnight, and suddenly a buried line sounds like a very good idea.

It usually is. The trench, though, is the least interesting part of the job. Depth, pipe size, where you tap in, and how you keep the house water safe all get decided first. Once there's dirt on top of them, you live with whatever you chose.

Decide What the Water Needs to Do

Begin with the building, not the hardware store. A greenhouse on drip irrigation, a workshop with a utility sink, and a barn with water troughs all place different demands on a line. Size it for how much water each fixture draws, the pressure it needs, and how many fixtures might run at the same time. Watering livestock in midwinter is its own project, because the line has to work when the ground is frozen solid.

Make a wish list of everything you might want out there someday, even half-serious ideas like an outdoor shower. Sizing the pipe for those during the first install is generally much simpler than coming back with a shovel in five years.

While you're still sketching, find out about permits. A lot of places require one for a new water line, and some insist on seeing the pipe before it's covered. You want to learn that before the trench is filled, not after.

Even keen DIYers get a lot out of an hour with a plumber at this stage. A plumber can measure your pressure, tell you whether the supply has room for another branch, and catch code problems before you've bought a single fitting. In Arvada, Colorado, where the ground freezes and thaws repeatedly through the winter, one local option for this kind of evaluation is Plumber Arvada.

Choose the Right Tap-Off Point

Branching off the main supply is the standard move. Tapping into an outdoor faucet is the tempting one, since it's right there. Sometimes that's fine. Often, though, the faucet sits on smaller pipe, and nothing downstream will ever deliver more than that pipe can carry.

Length works against you as well. Friction steals a little pressure along every foot of pipe, and each elbow and coupling takes its own cut. Pressure loss may be modest on a short run to a garden shed. Run the line clear across the property to a barn, though, and the hose at the end may barely push water. A larger pipe reduces that loss, and a plumber can work out the right diameter for your distance and demand.

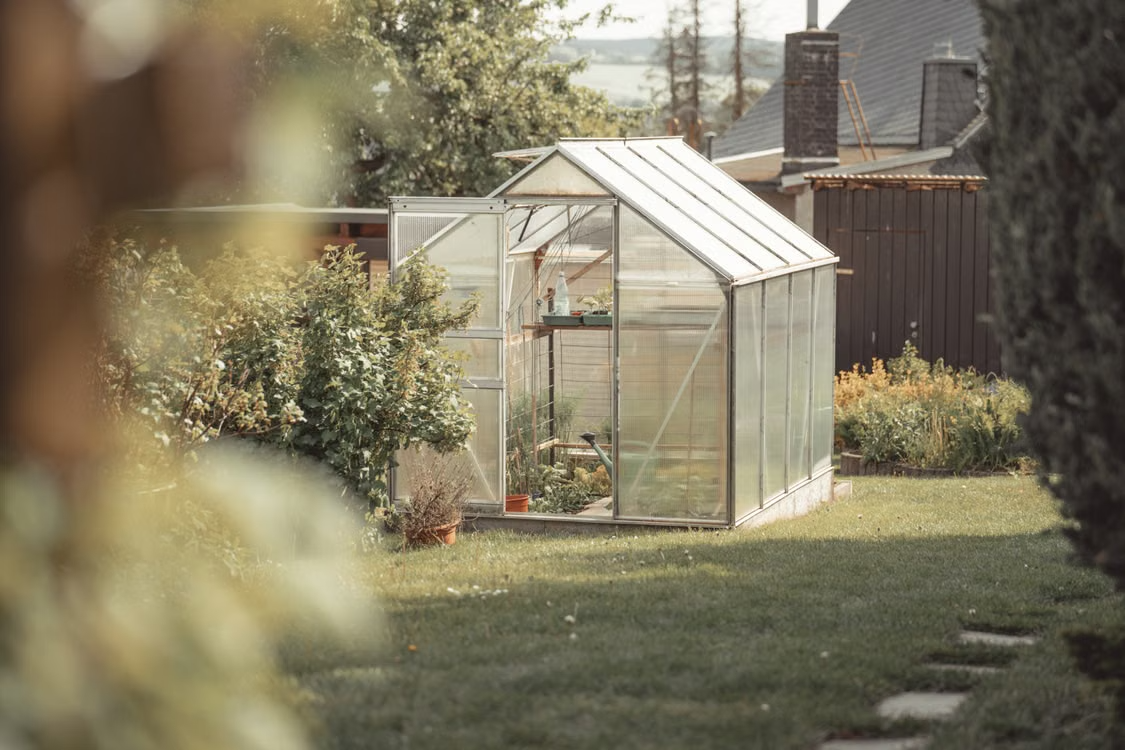

If you haven't built yet, you have more freedom. Greenhouses are usually placed for light, which is right, but give the water route a say too. When you're browsing greenhouse kits, think about where you'll actually stand to pot up seedlings. Getting water to that corner by a short, direct path spares you a lot of hose-dragging later.

Well owners have extra homework. Compare your well's yield, pump capacity, and pressure-tank size against what the house and outbuilding might draw at the same time. If the pump already starts and stops frequently, have it checked before adding demand, since that can point to a tank or pressure-switch problem.

Get Below the Frost Line or Plan Around It

Freezing causes a lot of trouble for buried lines. Ice expands, and pipe and fittings don't always survive the squeeze.

There are two measurements to know, and people tend to mix them up. One is the frost line, which is how far down your ground freezes. The other is the minimum soil cover your code requires over water pipe. Some codes require both a minimum cover and extra depth below the frost line, so the answer isn't always one or the other. Ask your building department for the required installation depth, and follow the requirements adopted where you live.

Rock, roots, or a very long run can make that depth impractical. If so, ask your building department whether a seasonal installation is permitted and what burial and winterization requirements apply. If it's allowed, put a shutoff at the house where you can actually reach it and add drain points at the low spots. Then have your plumber specify a winterization method suited to your pipe, fittings, and anything connected to the line. Sloping the pipe helps, but it won't guarantee that every dip and fitting empties. If the plan includes blowing the line out with compressed air, leave that to a professional. Too much air pressure can damage components and injure whoever is standing nearby.

Burial only protects the part of the line underground. Risers, faucets, and sink plumbing inside an unheated shed or greenhouse need their own freeze protection or a seasonal drain-down.

Frost-free yard hydrants come up a lot in this conversation, usually as a fix for shallow burial. They aren't one. The valve and drain sit underground and still belong below the frost line, with free-draining material around the base as the manufacturer specifies. In waterlogged soil, the hydrant may not drain properly, which puts it at risk of freezing. Follow the manufacturer's installation instructions closely.

One step nobody should skip is getting utilities marked before you dig. In the United States, call 811. In Canada, contact your provincial locating service through Click Before You Dig. Either way, wait until every utility has marked its lines or cleared the area. These services generally cover public utilities only. Old cable out to the shed, or an irrigation line a previous owner put in, may only show up with a private locator.

Pick Pipe That Suits Burial

Underground, polyethylene (PE) tubing and PEX are the usual picks. Both flex, neither corrodes, and both come in coils long enough that many runs need few or no joints. That's what you want, because joints are where buried leaks tend to begin. Some PEX products also tolerate freezing better than rigid pipe, though they still need protecting from it. PVC is permitted in many areas; it's just stiffer and less forgiving of soil that settles or shifts. Whatever you choose, make sure it's rated for drinking water and for direct burial.

Installation decides whether good pipe lasts. Bed it in sand or fine soil, never sharp rock. Route it away from established trees so you don't have to cut through major roots on the way. Plastic pipe should get a tracer wire laid alongside so someone can find it decades from now. Sleeve it where it passes through a foundation or slab. Any PEX that surfaces above ground needs UV protection approved by the manufacturer, and ordinary foam insulation often doesn't qualify.

If your area requires an inspection or pressure test, schedule it while the trench is still open. A leak at a fitting you can see is far easier to deal with than one you have to dig up to find.

Protect the Drinking Water at the House

This is the part of an outbuilding project that can reach the glass of water in your kitchen. Sheds and barns attract questionable connections, like a hose dropped in a stock tank, a fertilizer injector on the drip system, or a sprayer with herbicide still in it. If pressure in the house system dips, water can be drawn backward through those setups and into the pipes supplying your drinking water. That's called backflow, and it isn't hypothetical. The U.S. Environmental Protection Agency's cross-connection control manual describes real incidents where ordinary connections like these contaminated drinking water.

No single device fits every case. For a faucet you use now and then on the vegetable beds, a hose bib vacuum breaker may be enough. Chemical injection, livestock watering, and irrigation can call for something else, depending on the hazard and whether the line stays under constant pressure. Certain frost-free hydrants also need a sanitary design, since their drain port is underground. Tell your water authority or plumber exactly what the line will serve, and get their sign-off on the protection.

Plan Where the Water Goes Next

Whatever water you bring in has to go somewhere. A sink needs a drain, and where it discharges is regulated. The rules differ widely from place to place and depend on what's being drained, so look into them before you settle on a route.

Greenhouses have a quieter version of the same problem. Watering produces runoff, and if it keeps pooling near the footings, the ground under the structure can soften over time.

Plan the drain alongside the supply. Sharing a trench saves digging, but codes usually require some separation between the two lines. That spacing is much easier to work out on paper than during an inspection.
