- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1300W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
SMALL CHANGE, HUGE LEAP

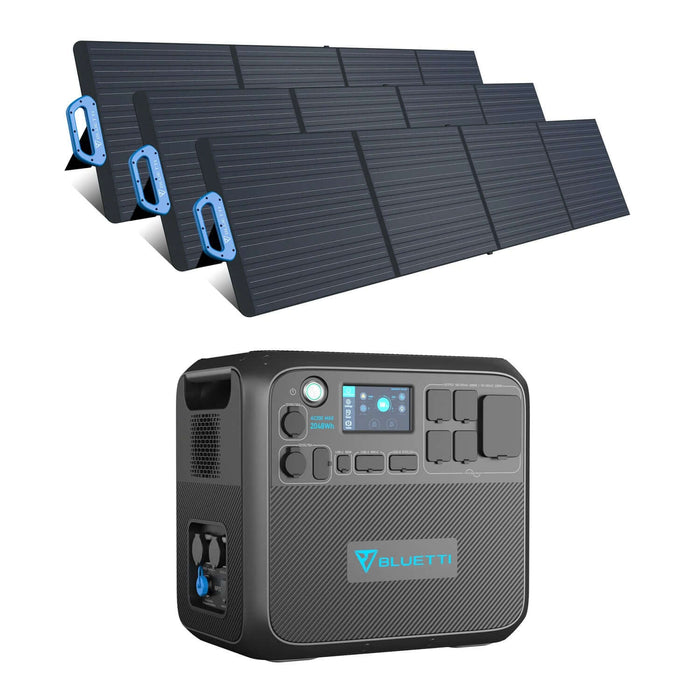

The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.
LESS TO SPEND, MORE TO LOVE
Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
GET CHARGED IN ANYWAY YOU PREFER
The AC200MAX allows up to 900W of solar input and 400W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every Bluetti battery module has their own input port for AC adapters, you’ll get another 400W of input capability with every module added (Up to two for the AC200MAX).
INCOMPARABLE OUTLET VERSATILITY
With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
Specifications For AC200MAX
|2,048Wh (51.2V, 40Ah)|
|LiFePO4 (Lithium Iron Phosphate)|
|3,500+ Cycles to 80% Original Capacity|
|Recharge to 80% Every 3-6 Months|
|MPPT Controller, BMS, etc|
|| 4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total
Pure Sine Wave
2 x 5V/3A USB-A
2 x 18W USB-A
|12V DC Outlets:||
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
|Wireless Charging Pad:||2 x 15W Max. (For Each)|
AC Adapter (400W):
|Solar (900W):||≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)|
|12V/24V Car Outlet (100W/200W):||≈10 or 20 Hours|
|AC Adapter + Solar (1300W):||≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)|
|Dual AC Adapters (800W):||
≈3~3.5 Hours (Extra adapter is REQUIRED)
|Scalability:||Expandable w/ Up to 2 x B230 or 2 x B300|
|Dimensions (LxWxD):||16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)|
|Operating Temperature:||-4-104℉ (-20-40℃)|
|Certifications:||UL Standard, CEC, DOE, FCC, CA Prop 65|
In The Box
Specifications For PV200
|Peak Power (Pm):||200W|
|Solar Cell Lamination:||ETFE (Ethylene tetrafluoroethylene)|
|Cell Efficiency:||Up to 23.4%|
|Voltage at Max Power (Vmp):||20.5V|
|Current at Max Power (Imp):||9.7A|
|Open Circuit Voltage (Voc):||26.1V|
|Short Circuit Current (Isc):||10.3A|
|Operating Temperature:||14-149℉ (-10-65℃)|
|Best Working Temperature:||77℉ (25℃)|
|Connector:||Standard MC4 Connector|
|Cable Length:||118in (3m)|
|Dimensions (Unfolded):||23.2 × 89.2in (59 × 226.5cm)|
|Dimensions (Folded):||23.2 × 24.8inch (59 × 60cm)|
In The Box
Frequently Asked Questions:
Q1: How Many B230 or B300 battery modules can connect with the AC200MAX?
Q2: Can the B230 battery module be used alone?
Note: The total power of your devices should NOT exceed 700W
Q3: How can I charge B230?
2. Car cigarette lighter output or solar panels(BLUETTI D050S DC charging enhancer is sold separately.)
Q4: Does AC200MAX support split phasing bond?
Q5: Can AC200MAX be controlled remotely via APP?
Q6: How can I charge AC200MAX?
Q7: Does AC200MAX have UPS function?
Q8: Can AC200MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?
Q9: What's the solar charging controller mode? MPPT or PWM?
Q10: Can I use a third-party solar panel?
Total open-circuit voltage(OCV): 10-145V
MAX Input Current: 12A
With MC4 connectors
Q11: Can you ship the AC200MAX to Puerto Rico, Hawaii, and Alaska to deliver?
Can not. Because the package exceeds the weight limit of the logistics company.
